Flat vulcanizing press

Make an online inquiry ico

This series of vulcanizing presses is the primary molding equipment for both molded and non‑molded rubber products, featuring a simple structure, high pressure, broad applicability, and high efficiency. It can also be used for compression molding of thermosetting plastics, foams, resins, bakelite, thin metals, building materials, and other molded products. Equipped with an imported PLC control system, it delivers sensitive and reliable operation.

Customizable upon customer request.

Equipment Introduction

Technical parameters

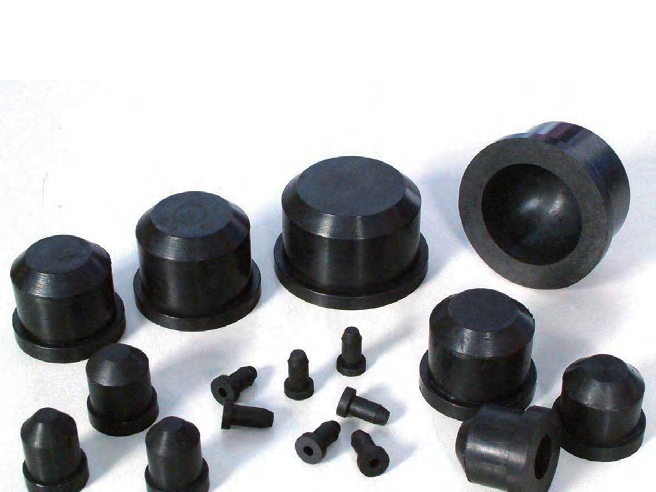

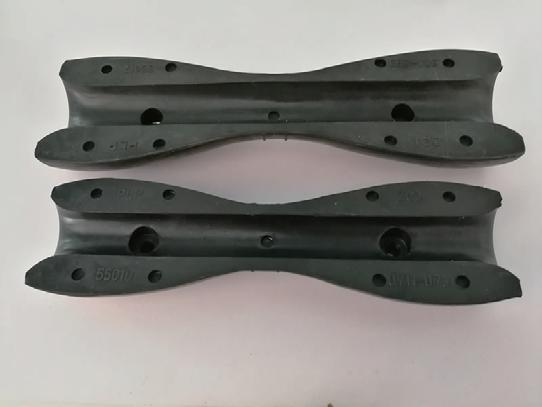

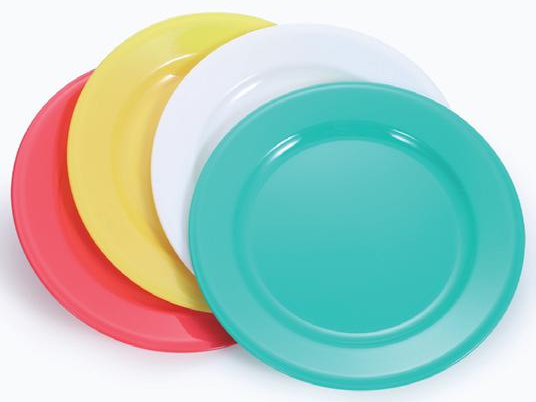

Application scenario

Performance Features

1. The moving platen features rapid upward movement, slow-speed clamping, and rapid downward movement; the fast-to-slow transition during mold closing and the fast-to-slow transition during venting can be adjusted independently, thereby enhancing production efficiency.
2. During the vulcanization and molding process, the oil pump motor automatically shuts down, featuring automatic pressure compensation and a delayed shutdown sequence; the hydraulic circuit is designed to be more rational and reliable.
3. The number of venting cycles, venting time, heating temperature, and vulcanization time are all programmable, offering convenient operation and supporting both manual and semi-automatic modes.
4. Temperature and pressure curve output, with process traceability.

Optional Add-ons

1. Removable platform
2. Vacuum System
3. Mold temperature controller
4. Adjustable opening

Project	Unit	315T	500T	630T	800T	1000T	1200T	1600T	2000T	2500T	3000T	3500T	4000T	5000T
Pressurization capability	KN	3150	5000	6300	8000	10000	12000	16000	20000	25000	30000	35000	40000	50000
Molding force	KN	453	580	650	1200	1600	2000	2600	3200	4000	4000	4700	5700	6800
Opening height	mm	1200	1400	1600	2000	2200	2400	2600	3000	3000	3200	3200	3400	3400
Slider stroke	mm	800	1000	1200	1400	1600	1800	2000	2200	2200	2200	2200	2400	2400
Workbench dimensions (left–right)	mm	1200	1400	1600	2200	2600	2800	3000	3200	3600	3600	3800	4000	4000
Workbench dimensions (front to back)	mm	1200	1400	1600	1600	1800	2000	2000	2000	2400	2400	2600	3000	3000
Slider rapid descent speed	mm/s	200	200	200	300	300	300	300	400	400	400	400	400	400
Slider slow-down speed	mm/s	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
Slider pressing speed	mm/s	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Slow mold opening speed	mqn/s	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5
Slider rapid return speed	mm/s	160	175	195	200	200	200	200	200	200	200	200	200	200
Total power (approx.)	KW	20	30	36	36	55	70	80	105	130	160	200	230	300

This series of vulcanizing presses is the primary molding equipment for both molded and non‑molded rubber products, featuring a simple structure, high pressure, broad applicability, and high efficiency. It can also be used for compression molding of thermosetting plastics, foams, resins, bakelite, thin metals, building materials, and other molded products. Equipped with an imported PLC control system, it delivers responsive and reliable operation.
